Spicer/Neapco 1410 Series Slip Yoke
Spicer/Neapco 1410 Series Slip Yoke

SKU: BS3-3-508KX

Price: $92.30
Quantity:


Spicer/Neapco 1410 Series Slip YokeSpicer/Neapco 1410 Series Slip YokeSpicer/Neapco 1410 Series Slip Yoke
Spicer/Neapco 1410 Series Slip YokeSpicer/Neapco 1410 Series Slip Yoke

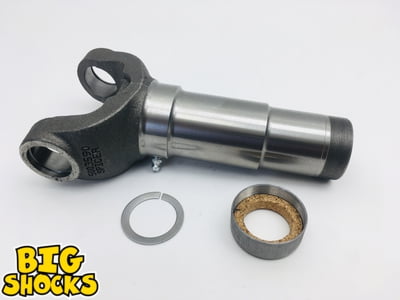

Spicer/Neapco 1410 Series Slip Yoke Product Description:

Slip Yoke 1410 Series 16 Spline 1.5" Dia, 7.8125" Center To End

General Design Type     LD-MD Driveshaft
U-Joint Series     1410
Spline Major Diameter     1.500
Spline Count     16.000
Spline Type     Parallel
Max Joint Angle     28.000

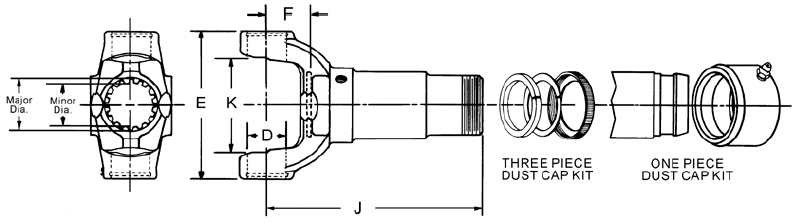

Universal Joint Retaining Width   E   4.438
Universal Joint Bearing Diameter   D   1.188
Centerline of Joint to End of Spline   J   7.812
Centerline of Joint to Face of Plug   F   1.344
Part Number of Lube Fitting     SPI-500174-1
Dust Cap & Washer Kit Number     SPI-D3A
Slip Yoke Plug part number (included)     SPI-3-68-33
Boot Kit Assembly part number (order separately)
Compatible U-Joint Kits     SPI-5-160X, SPI-5-1410X
Style     Snap Ring
