Spicer/Neapco 1350 Series Slip Yoke Turbo 400 Product Description:

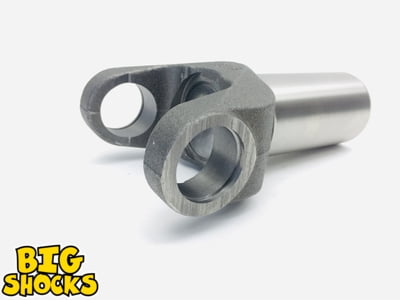

 Spicer 1350 Series Turbo 400 Slip Yoke

31 To 32 Spline 5.50 C To End 1.886 Seal Surface



U-Joint Series     1350
Spline Major Diameter     1.375
Spline Count     32.000
Spline Type     31 Based on 32 Spline

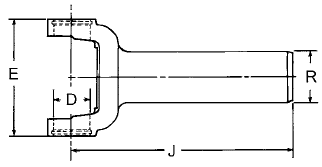

Universal Joint Retaining Width   E   3.875
Universal Joint Bearing Diameter   D   1.188
Centerline of Joint to End of Spline   J   5.500
Ground Hub Diameter   R   1.885
Counterbore Diameter     1.474
Counterbore Depth     0.500
Style     Snap Ring
Slip Yoke Plug part number (included)
Compatible U-Joint Kits     SPI-5-178X, SPI-5-1350X, SPI-SPL30-1X
Notes     Counterbored
    Cast
