2.25" S-Series - 8" Travel (4) Shock & Spring Packages

2.25" S-Series - 8" Travel (4) Shock & Spring Packages

SKU: 2.25S8-4

Price: $2,499.50
Shock Valving Options:
Reservoir Hose:
Front Spring Pack:
Rear Spring Pack:
Mis-Alignment Bushing Kit:
Shaft Bump Stop:
Bolt Kit:

Info about your truck? (Example) GMC 2500hd Diesel ex-cab 5tons 23.1 tires *

Quantity:


2.25" S-Series - 8" Travel (4) Shock & Spring Packages2.25" S-Series - 8" Travel (4) Shock & Spring Packages2.25" S-Series - 8" Travel (4) Shock & Spring Packages

2.25" S-Series - 8" Travel (4) Shock & Spring Packages Product Description:

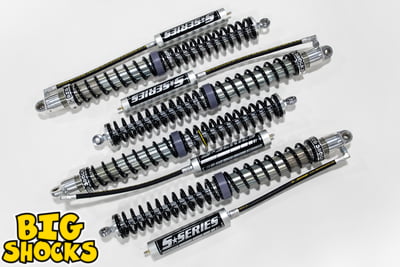

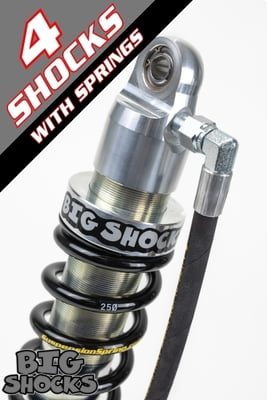

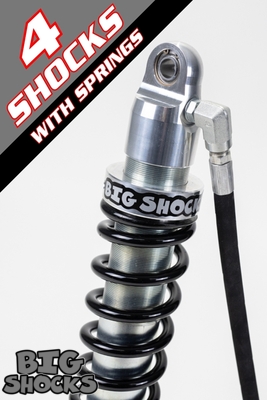

Big Shocks 2.25” S-Series shocks are ideal for custom 4-link trucks, sand cars and off-road vehicles.  Quality, CNC machined, hand assembled, dyno tested design provide suspension control and durability. Made in USA

  • Custom compact short design (1"-2" shorter collapse length)
  • Up to 1300 lb. MAX Corner weight due to spring availability.
  • For heavier spring options see 2.50" shocks.
  • Shock travel ranges from 8” to 16".
  • Billet 6061 CNC Machined shock top with com-10 style bearing.
  • All S-Series shocks come standard with alloy threaded steel bodies.
  • Threaded preload adjuster.
  • Unlimited valving shim options.
  • 2.25"x 11" clear hard anodized snap ring reservoirs.
  • High strength 1" hard chrome steel shafts.
  • 5/8" chrome-moly heims.
  • Made in USA

Recommended nitrogen pressure

150 psi Emulsion shocks at full extension.

150 psi Bonzi Reservoir shocks at full extension.

150-200 psi PRO Series Reservoir shocks at full extension.



We stock most spring packs. Some springs are drop shipped from the factory and take up to 7-14 business days for the manufacturer to process and ship.



Common Spring Packages

Front

900 lbs Mini Truck

1100 lbs Mini Truck w/ V8

1300 lbs Full Size Truck

1500 lbs Full Size 4 Door Truck

1700 lbs Full Size 4 Door Diesel

2000 lbs Super Duty 4 Door Diesel

Rear

500 lbs Mini Truck

700 lbs Mini Truck w/ V8

900 lbs Full Size Truck

1100 lbs Full Size 4 Door Truck

1300 lbs Full Size 4 Door Diesel

1500 lbs Super Duty 4 Door Diesel
