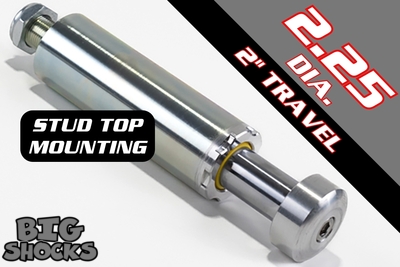

Big Shocks 2.25" x 2" Travel Bump Stop

Big Shocks 2.25" x 2" Travel Bump Stop Product Description:

These are compact and heavy duty air bump stop. Great offroad trail bump stop. 2.25" D.O.M steel plated body, 1-1/4" Shafts with a 100,000 lb. tensile strength. All thread together (no snap rings). Aluminum bump pads. Mounting can optional. Stud style mount eliminates can pinching. 2" stroke or 3" stroke.  Made in USA

SOLD EACH (1) BUMP STOP.

Your Bump Stops are shipped with NO pressure in them. You need to charge them with shop air or nitrogen.

10% of corner weight baseline.

600 lbs corner weight - 60 psi

800 lbs corner weight - 80 psi

1000 lbs corner weight - 100 psi

1300 lbs corner weight - 130 psi

Ramp up Rate

100 psi = 450 psi

150 psi = 625 psi

140 ml. of oil.
